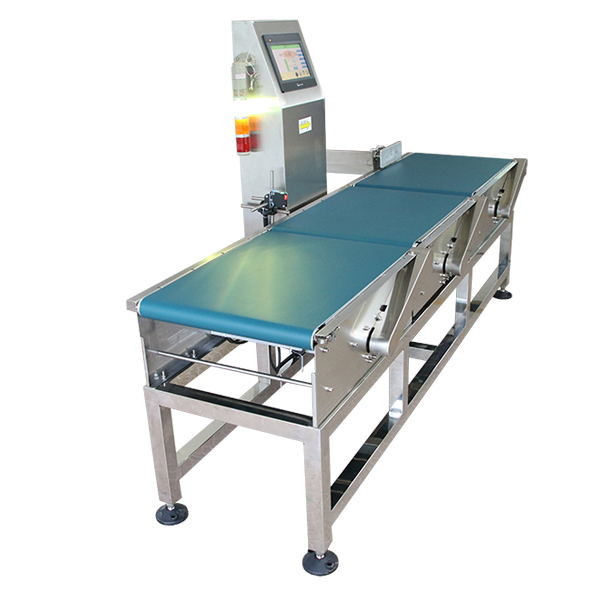

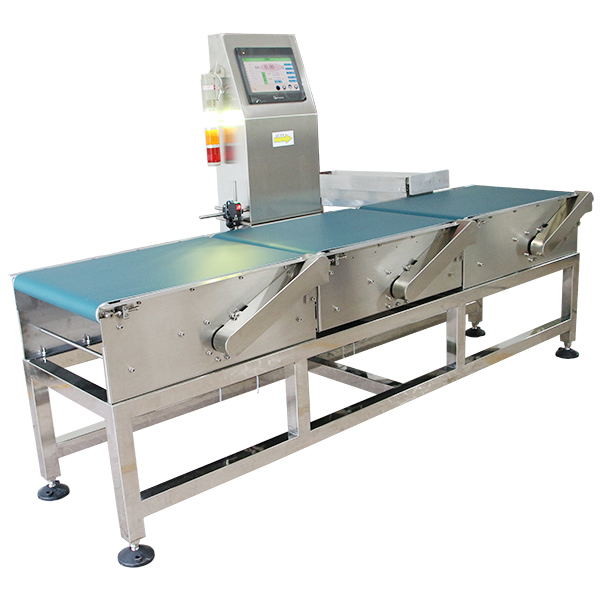

Precision Stainless Still Conveyor Weight Checker For Weighting And Sorting Foods
Brief introduction of check weigher:
Metal detector check weigher also named Check weigher, check weighers, check weigher machine, weight sorting machine, weight sort machine, online check weigher, online weight sorting machine, weight checker, weight pick, conveyor check weigher and so on.
Ensures the quality of your production. The Vfinder Checkweighers offer the best choice. The modular design makes the scale application flexible and can be widely used. The weight checkers are available with high quality metal detectors.
Key features:
- Strong stainless steel structure; Water proof design;
- It is easy to operate with liquid crystal and tangibly screen,
- Touch screen;friendly operation interface;
- Based on advanced digital weighing unit;
-
Belt disassembling without tools, which is easier to clean
-
Rejecter system choose :automatic stop by sound and light .air blast. or pneumatic push rod
-
Stable sensitivity and no need to do calibration often.
-
Easy to replace: can store a variety of formulations, convenient for the replacement of product specifications;
Scope of application :
Our Conveyor Weight Checker are suitable for testing the weight of a small single item whether is qualified or not, and it is widely used in electronic, food, pharmaceutical, beverage, health-care, chemical industry etc. F or example, it can be used in food industry to check the weight of flavour, cake, hams, instant noodles, frozen food, food additives, preservative etc.
About VC series:
The Dynamic VC and VC series are built using welded Stainless Steel tube construction, created a very ridged and long lasting frame that will withstand even the most abusive environments. Built to handle virtually every product in any environment, only simple modifications are required to change bed widths and lengths. The VC series is designed for very heavy packages and therefore is constructed of steel channel.
Parameter details :
| Model Name | VC-10 | VC-15 | VC-22 | VC-30 | VC-40 | VC-25(two belt) | VC-100 |
| Weight range (g) | 3-100 | 3-300 | 10-1200 | 30-3000 | 50-1000 | 50g-25kg | 1kg-100kg |
| Mini weight accuracy (g) | ±0.1 | ±0.3 | ±0.5 | ±1 | ±0.5 | ±5g | ±10g |
| Mini screen value (g) | 0.01 | 0.1 | 0.1 | 0.1 | 0.1 | 0.5 | 1g |
| Max weigh speed (Bags /Minute ) | 20 | 330 | 210 | 180 | 180 | 50 | 20 |
| Belt speed | 0 | 16-118 | 13-96 | 13-96 | 13-96 | 13-78 | 3-15 |
| (Meter/minute ) |
| Suitable product length (mm) | - | 60-180mm | 60-300mm | 60-420mm | 60-500mm | 60-420mm | - |
| Suitable product width (mm) | - | 30-150mm | 30-200mm | 30-250mm | 30-400mm | 30-380mm | - |
| Suitable product height (mm) | - | 10-130mm | 10-200mm | 10-330mm | 10-330mm | 10-430mm | - |
| Weigh zone size (mm L*W) | - | 270*110 | 400*220 | 500*300 | 500*400 | 800*600 | 1000*800 |
| Note | Non-standard (without belt) | High accuracy | Small common model | Customized model | Customized model | Common model for Box | Roller end belt |
| Reject device optional | Pin Rod /Push rod /air blast /divided flow /drop down /flap drop (Optional ) |
Company information:
we are a professional metal detector manufacturer.
we accept kinds of metal detector customized.
