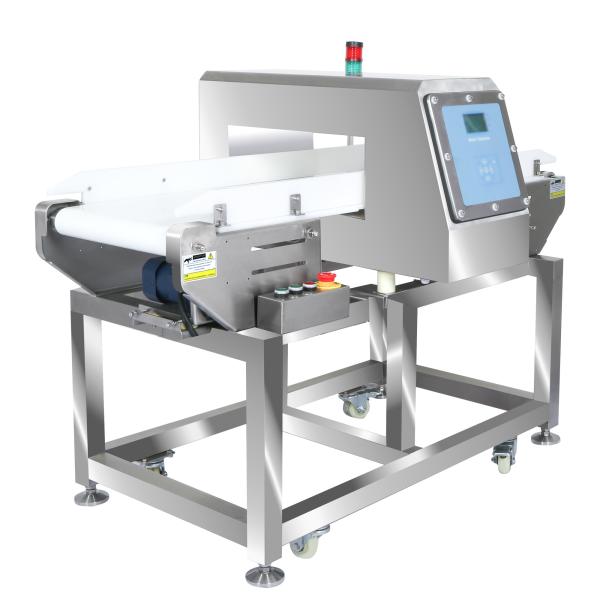

Food Industry Metal Detectors For Meat Fish Seafood Vegetable Fruit

GUANGDONG SHANAN TECHNOLOGY CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Food Industry Metal Detectors For Meat Fish Seafood Vegetable Fruit

  • 1
  • 2

Brand Name : SHANAN

Model Number : VTF

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1 set

Price : negotiation

Payment Terms : T/T

Supply Ability : 100 set/month

Delivery Time : 15work days

Packaging Details : Box

Application : food industry

Tunnel size : 40*20

Alarm : buzzer and light

Reject system : air blast

Warranty : 24month

Belt speed : customized5/35meters

Type : conveyor belt type

Contact Now

About Shanan Group.pdf

Food industry Metal Detectors for meat, fish, seafood, vegetable, fruit, Sports Food

Metal Detector for bulk products

The versions of metal detectors designed and manufactured by Idecon adapt also to the features of the bulk products. The maximum length of the conveyor belt can reach 1650 mm assuring always the maximum sensibility during the detection.
Idecon metal detectors meet the strictest requirements of functionality, compactness, accuracy and reliability.

Metal Detector for packed products

Idecon metal detectors are also used for packed products (pouches, trays, bags, etc.) and they can detect magnetic and not magnetic metals which can contaminate the industrial products.

General specification :

Self-frequency adjustment .Enjoys a variety of operating frequency, According to products style self automatic adjustment.stable features.

  • self-learning function and high sensitivity.can recognize different kinds of products.
  • Can store and records about 100 product parameter data .easy for different production line shift
  • Can according to customer production line design the belt height so achieve butt-joint to other equipment
  • Two digital collection line keeps it good performance .
  • Full Digital touch screen help it is easy to operate .
  • Special design for strong anti-interference function for harsh production environment
  • High standard shake-proof .water-proof keep it super performance and long service life.
  • Improve design keep it Zero wrong alarm when tap the probe.succinctly detachable framework design let it easy for the operators to clean the equipment.

Application :

Food industry

Medical industry

Food additives

Baby products

Health products

Other industry that need reject and detect metals

Standard replace use Layout parts :

One set of hex wrench

Full sets of the range calibration test cards(Ferrous,non-ferrous ,Stainless steel)

Warranty

12month labor and parts

Full life technical support

Packing and shipment

Full machine takes of two layer package

Prepackage takes of plastic bags conveyor the full machine and the key parts have foam plastic protection

Each package takes of Strong ploy wooden case that meet different country import standard

Installation and use

When you takes of the package .up the rubber base ,use wheel move it to your work place.

Then down the rubber base and fasten it..keep all the base in a horizontal

Parameters:

Model VTF series
Machine specification Normal machine Customized width
(mm)Detection Width 400 500 customized
(mm)Detection Height 100 120 150 200 250 300 350 400
Detection Sensitivity Fe(Φmm) ≥0.8 ≥1.0 ≥1.2 ≥1.5 ≥2.0 ≥2.5 ≥3.0 ≥3.5
Non-Fe(Φmm) ≥1.0 ≥1.2 ≥1.5 ≥2.0 ≥2.5 ≥3.0 ≥3.5 ≥4.0
304Sus(Φmm) ≥1.2 ≥1.5 ≥2.0 ≥2.5 ≥3.0 ≥3.5 ≥4.0 ≥4.5
Alarm and rejector system Automatic stop by alarm and sound or push rod or falling drop
Machine structure Full structure takes of stainless 304
Machine size (mm) L1520mm×W830mm×H1000mm if customized it will according to customized size
Machine weight Around 250KG if customized the weight will different
Voltage and power 220V 50Hz 90W
Load ability 5-25KG conveyor belt running speed :25-30m/min or customized various
Height from the earth 750mm±50mm can customized
Note :Normal size machine have stocks. Unnormal size machine have to customized

Reject system(optional)

Optional reject 1 :Push rod

Optional 2:flap drop

Optional 3:Air blast

Food Industry Metal Detectors For Meat Fish Seafood Vegetable FruitFood Industry Metal Detectors For Meat Fish Seafood Vegetable FruitFood Industry Metal Detectors For Meat Fish Seafood Vegetable FruitFood Industry Metal Detectors For Meat Fish Seafood Vegetable FruitFood Industry Metal Detectors For Meat Fish Seafood Vegetable Fruit
