Product description

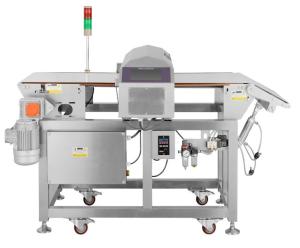

Digital metal detector
Applicable industries:
Food testing, metal impurities and metal foreign substances in bread, buns, steamed buns, dumplings, biscuits and other products, as well as pharmaceuticals, toys, clothing, footwear, chemicals, leather,
Knitting and other industries detect metal impurities in products or raw materials during production and processing. Such as: iron and non-ferrous magnetic metal items (iron, copper, aluminum, stainless steel, etc.)
Non-ferrous metals can be detected), improve product safety factor, and comprehensively improve enterprise product quality.
Equipment performance characteristics:
1. The core part is carefully developed using leading digital technology and original imported chips. The detection coil is formed in one time by potting, which has high detection accuracy and performance.
Stable, strong anti-interference ability.
2. It can be produced with multiple frequencies according to product characteristics, and has product test data storage function. It can store about 100 kinds of product test data and has a wide range of applications.
3. Adopt intelligent recognition technology, with self-learning and memory functions, can automatically recognize and memorize product characteristics, and effectively eliminate interference caused by various "product effects".
4.Simple and friendly operation interface, adopting the D display, and can set the parameters quickly and conveniently through the simple key control interface; it can detect the inclusion of different products
Signals (characteristics) of multiple products, once set can ensure extremely high detection accuracy, without readjusting, setting procedures.
5. Modular component replacement, convenient and quick maintenance.
6. Meet the requirements of HACCP, GMP, FDA.
7. Shockproof and waterproof design, dustproof and waterproof function conform to IP-66 / IP-65 international certification, anti-vibration and noise absorption, can adapt to harsh working environment.
8. Various removal devices (such as flaps, air blows, push rods, etc.) and lightweight, large-package special and heavy-duty fuselage designs can be used according to user needs.
Tech Parmeter
| Item number | Standard |
| Detection channel width (mm) | 400 |
| Detection channel height (mm) | 80 | 100 | 120 | 150 | 200 |
| standard Detection sensitivity | Fe diameter(mm) | ≥0.8 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 |
| Non ferrou dia (mm) | ≥1.0 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 |
| 304SUS dia (mm) | ≥2.0 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 |
| Alarm method | Automatically stop operation when metal foreign matter is detected, buzzer alarm (optional for removal device) |
| Machine material | The whole rack is made of SUS304 food grade stainless steel, which complies with HACCP, GMP, FDA, CAS and other standards |
| Mechanical size (mm) | 1330 × 780 × 1100 (length × width × height) |
| Machine weight | About 180KG |
| motor | 90w motor |
| Load-bearing | ≤25Kg |
| Belt speed | 26m / min (customizable speed control motor) |
| Note: The above sensitivity parameters are the test results when the aircraft is free of environmental interference. The actual application will be slightly different due to the interference of the use environment and the components of the detected object! |
